Does TR700 Desktop Landline Call Recorder — 1TB HDD, 8–64 Lines, LAN Access work with PTCL landlines?

Yes. All RecorderMax devices are fully compatible with PTCL analog landlines, PABX extensions, and standard RJ11 telephone lines across Pakistan.

Is call recording legal in Pakistan?

Call recording laws in Pakistan are governed by the Pakistan Telecommunication (Re-organization) Act. Recording calls for legitimate business purposes such as compliance, quality assurance, and dispute resolution is generally permitted. Consult a legal advisor for your specific use case.

What is the warranty on TR700 Desktop Landline Call Recorder — 1TB HDD, 8–64 Lines, LAN Access?

RecorderMax provides a 1-year warranty on all devices covering manufacturing defects. Free WhatsApp support is included for the life of the product.

Does it require internet or a PC to work?

The standalone version records directly to an SD card with no PC or internet required. Optional cloud access is available via LAN connection.

How many calls can it record simultaneously?

The TR700 Desktop Landline Call Recorder — 1TB HDD, 8–64 Lines, LAN Access supports recording on multiple telephone lines simultaneously, capturing all incoming and outgoing calls automatically.

⚡ Ships within 24 hours of order 🚚 Free delivery · All Pakistan · 1–2 days ✅ 500+ offices & businesses trust RecorderMax 🔒 1-Year Warranty · 7-Day Returns ⚡ Ships within 24 hours of order 🚚 Free delivery · All Pakistan · 1–2 days ✅ 500+ offices & businesses trust RecorderMax 🔒 1-Year Warranty · 7-Day Returns

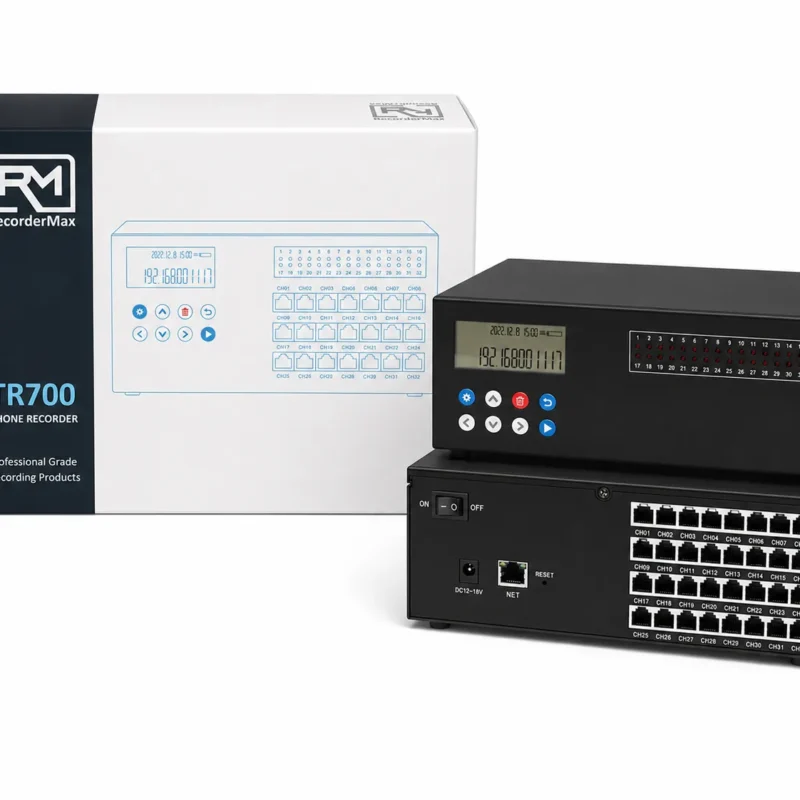

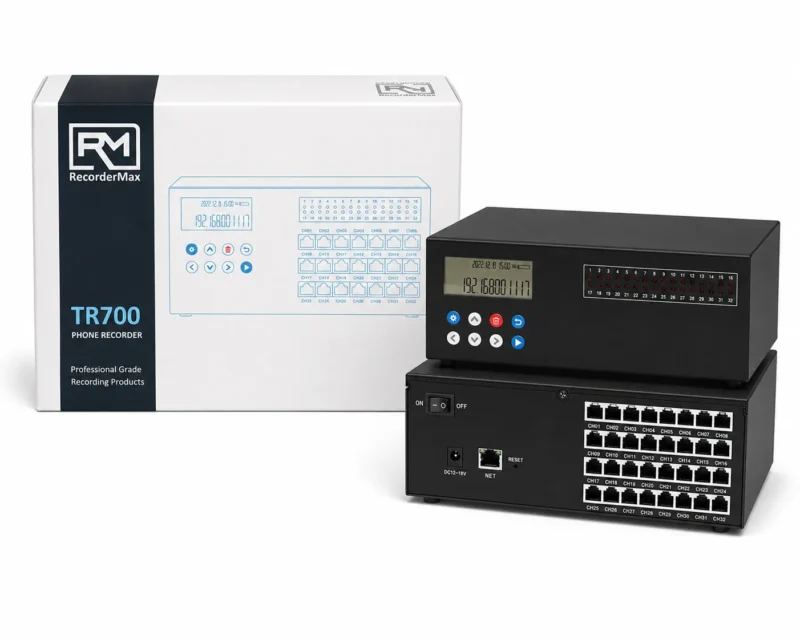

TR700 Multichannel Desktop Landline Call Recorder

500+ businesses trust RecorderMax across Pakistan

Desktop Series

TR700 Desktop Landline Call Recorder — 1TB HDD, 8–64 Lines, LAN Access

Model: TR700 In Stock

SELECT CHANNELS

Select a channel count above

Free shipping · Delivers in 1–2 days, All Pakistan

Rs 144,500

Per line cost: Rs 18,063 · 1TB HDD (pre-installed)

Market price via USA import: ~~Rs 404,500–549,000~~ — ✓ You save Rs 260,000+ by buying local

Enquire on WhatsApp — 0300 011 1864

🎁 Free gifts with every order

FREE Rs 15,000

1TB HDD
Included

FREE Rs 500

Free Shipping

FREE Rs 2,000

PC Software

High-capacity desktop call recorder for offices needing to record 8–64 PTCL lines simultaneously. 1TB HDD storage, LAN/cloud management, and multi-user access — completely standalone, no PC required.

Key Features

Records 8 to 64 PTCL / analog lines simultaneously
1TB HDD — 36,000+ hours total recording capacity
Records both sides of every call in WAV / A-Law format
Time & date stamped files — search by date, time, channel, caller number
Remote management via LAN / WAN — access recordings from anywhere
Cloud server backup — automatic daily/weekly backup to PC
Multi-user management — set access permissions per user
Real-time monitoring — live call status on any channel
Pop-up screen alerts — incoming/outgoing call notifications on PC
Phone address book — organize recordings by contact
Anti-lightning & anti-short-circuit protection
Loop recording — never misses a call when storage is full
Works completely standalone — no PC or internet required
Online firmware upgrade via cloud server

Compatibility

✓ PTCL Landlines✓ Analog Lines✓ PABX / PBX✓ RJ11 Standard✓ SME & Corporate✓ Call Centers

How It Works

Connect your office PTCL lines into the TR700's RJ11 input ports and plug in power. Every call across all channels records automatically to the 1TB HDD in WAV/A-Law format. Install the free RecorderMax PC software for live monitoring, remote access, and cloud backup — or run completely standalone.

What's in the Box

TR700 Landline Call Recorder unit
1TB HDD (pre-installed)
DC Power Adapter
RJ11 Phone Cables × 4
LAN Ethernet Cable
User Manual (English)
RecorderMax PC Software (CD / Download)
RecorderMax Warranty Card

General Specifications — TR700

Platform	TR700 Series
Model Number	TR700
Form Factor	Desktop Unit (Tower)
Dimensions	290 × 240 × 60 mm (approx.)
Weight	≈ 1.8 kg (with HDD)
Display	2″ Segment LCD + LED Status Indicator
Power Input	DC 8–18V · 12W
Operating System	Linux 3.0
Certifications	CE · FCC · RoHS
Warranty	1 Year (Parts & Labour)

Storage & Recording

Onboard Storage	1TB HDD (pre-installed)
Recording Format	WAV / A-Law
Storage Capacity	36,000+ hrs total on 1TB HDD
Loop Recording	Yes — auto-overwrites oldest
Manual Recording	Yes — via software
Recording Trigger	Voltage + Audio + Key

Connectivity

Phone Port	RJ11 × 8 per module (expandable)
Network Port	RJ45 Ethernet
Caller ID (CID)	DTMF / FSK
Cloud Access	Yes — built-in LAN + cloud server
Compatibility	PTCL · Analog · PABX · RJ11
PC Software	Windows (free, included)

Technical Parameters

Electrical
Input Voltage	DC 8–18V	Operating Current	800 mA
Maximum Current	1,000 mA	Power Consumption	12W
Off-hook Detect	3–80V	On-hook Detect	10–100V
Input Impedance	AC:100K · DC:5.1M	Frequency Range	0–8,000 Hz
Signal-to-Crosstalk	>60 dB	S/N Ratio	>70 dB
CID Detect Range	0 dB to −32 dB	CID Signal	DTMF / FSK
Channel & Storage Details
Channels Available	8 / 16 / 32 / 64	Storage	1TB HDD (expandable)
Total Recording Time	36,000+ hrs (1T HDD)	Recording Mode	Voltage + Audio + Key
LCD Size	2″	OS	Linux 3.0
Environmental & Interface
Operating Temperature	−20°C to 60°C	Humidity	10% to 90%
Network Port	RJ-45	Phone Port	RJ-11
Recording Format	WAV / A-Law	Multi-user	Yes — LAN management

Listen to a sample call recorded on the TR700 Desktop Landline Call Recorder — 1TB HDD, 8–64 Lines, LAN Access. Audio is clean and captures both sides of the conversation.

Sample Call · TR700 Desktop Landline Call Recorder — 1TB HDD, 8–64 Lines, LAN Access Recording

Both sides captured · Timestamped file

0:000:45

Recording quality note: Audio format is determined by the device. Both sides of every call are recorded in a single file, retrievable by date and time.

Download software, manuals, and firmware for the TR700 Desktop Landline Call Recorder — 1TB HDD, 8–64 Lines, LAN Access.

TR700 User Manual (English)

PDF

↓ PDF

TR700 Product Brochure

PDF

↓ PDF

TR700 Application (Windows)

EXE

↓ Download

How many phone lines can the TR700 record simultaneously? +

The TR700 is available in 4 configurations: 8, 16, 32, and 64 lines. All channels record simultaneously and independently, each saved as a separate timestamped WAV/A-Law file on the 1TB HDD.

How much recording can 1TB HDD store? +

36,000+ hours total on 1TB HDD. For 8-channel: ~4,500 hrs/line. For 16-channel: ~2,250 hrs/line. For 32-channel: ~1,125 hrs/line. For 64-channel: ~562 hrs/line.

Can I monitor and access recordings remotely? +

Yes. The TR700 has a built-in LAN port with cloud server support. Log in via LAN or WAN to monitor live calls, search recordings, and set up automatic backup to a PC.

Does it require PC software to function? +

No. The TR700 records all calls automatically to the 1TB HDD without any PC. The free RecorderMax PC software (Windows) adds live monitoring, pop-up alerts, remote access, and cloud backup.

What happens when the HDD is full? +

Loop recording automatically overwrites the oldest recordings. You can also schedule automatic backup to a PC or network drive so all recordings are retained permanently.

Does it record both sides of the call? +

Yes. Both the caller's voice and your voice are captured in a single WAV/A-Law file per call, with full CDR: date, time, duration, and caller number.

What is the warranty? +

1-year warranty covering parts and labour. Contact RecorderMax on WhatsApp (0300 011 1864) within 7 days for DOA claims, within 1 year for manufacturing defects.
